Multi Function Plastic Case APET Plastic Sheet Dust Proof Clear Display Packaging Gift Box Case

Product Categories

Jiangyin Jiaou New Materials Co.,Ltd

Contact Now

Multi Function Plastic Case APET Plastic Sheet Dust Proof Clear Display Packaging Gift Box Case

Name: Multi Function Plastic Case APET Plastic Sheet Dust Proof Clear Display Packaging Gift Box Case
Brand: Jiaou
Price: 1 USD

China Multi Function Plastic Case APET Plastic Sheet Dust Proof Clear Display Packaging Gift Box Case wholesale

Place of Origin : Jiangsu, China

Brand Name : Jiaou

Packaging Details : Sample: A4 size rigid PET with PP bag in box Sheet packing: 30kg per bag or as your requirement Pallets packing: 500- 2000kg per wooden pallet Container loading: 20 tons as normal

Supply Ability : 100 Tons Per Day

MOQ : 1000 kilograms

Price : Negociated

Model Number : APET Sheet

Certification : FDA, GRS, Reach, RoHS, ISO9001

Payment Terms : T/T, L/C

Delivery Time : To Be Negotiated

Product name : APET Plastic Sheet Transparent Display Box

Other Product Name : PET Sheet

Thickness : 0.18-2mm

Size : 300-1280mm

Processing Service : Cutting

Origin : China

Color : Transparent

Application : For Display Box

Feature : High Transparency

Sample : Available

Packing : Pallets

Port : Shanghai,Lianyungang,Zhangjiagang,Ningbo

Contact Now

APET Plastic Sheet Plastic Display Box Case

Product Description

APET sheet is a thermoplastic sheet made of Polyethylene terephthalate resin. APET offers the capability to produce complex shapes, precise details, deep draws, and compound curves without worrying about durability. APET is easily formed, die-cut, and punched. It also brings increased design freedom and lower fabrication costs.

Item	Typical Value
Product name	APET Plastic Sheet Transparent Display Box
Width	300mm -1280mm
Thickness	0.18mm - 2mm
Size	Custom Size
Material	PET
Color	Transparent
Application	For Display Boxes
Surface	Smooth
Feature	Great Impact strength
Sample	Available

Advantages:

• Outstanding thermoforming characteristics, particularly in deep draw applications
• Good impact resistance
• Allows for rigid thermoforming cycle times
• Die cuts/punches easily
• Low forming temperature
• Printable
• Chemical resistant
• Self-extinguishing

Technical Data Sheet

General Properties	Value	Test Method	Unit
Density	1.36	ISO 1183	g/cm³
Water Absorption	0.25	ISO 62	%
Flammability	HB / HB	UL 94	/
Mechanical Properties
Yield Stress	85	ASTM D638	MPa
Elongation @ Break	15	ASTM D638	%
Tensile Modulus of Elasticity	3000	ASTM D638	MPa
Notched Impact Strength (Charpy)	2	DIN EN ISO 179	kJ/m2
Ball Indentation Hardness	170	DIN EN ISO 2039-1	MPa
Shore Hardness	84	DIN EN ISO 868	Scale D
Thermal Properties
Melting Temperature	255	ISO 11357-3	°C
Thermal Conductivity	0.28	DIN 52612-1	W / (M*K)
Thermal Capacity	1.1	DIN 52612	kJ / (kg*K)
Coefficient of Linear Thermal Expansion	60	DIN 53752	10-6K-1
Service Temperature, Long Term	-20 up to +115	Average	°C
Service Temperature, Short Term (Max.)	180	Average	°C
Heat Deflection Temperature	80	ASTM D648	°C
Electrical Properties
Dielectric Constant	3.4	IEC 60250	/
Dielectric Dissipation Factor (50Hz)	0.001	IEC 60250	/
Volume Resistivity	10 18	IEC 60093	Ω*cm
Surface Resistivity	10 16	IEC 60093	Ω
Comparative Tracking Index	600	IEC 60112
Dielectric Strength	20	ASTM D149	kV/mm

Application For APET Plastic Sheet

APET plastic sheets are widely used for packaging consumer goods, electrical blisters, and medical products. In packaging applications, APET sheets act as excellent barriers to acids and strong oxidizers.

Food containers and trays
Medical device package
Packaging
Folding box
Vacuum therm-forming
Blister Pack
ESD automotive tray

Multi Function Plastic Case APET Plastic Sheet Dust Proof Clear Display Packaging Gift Box Case

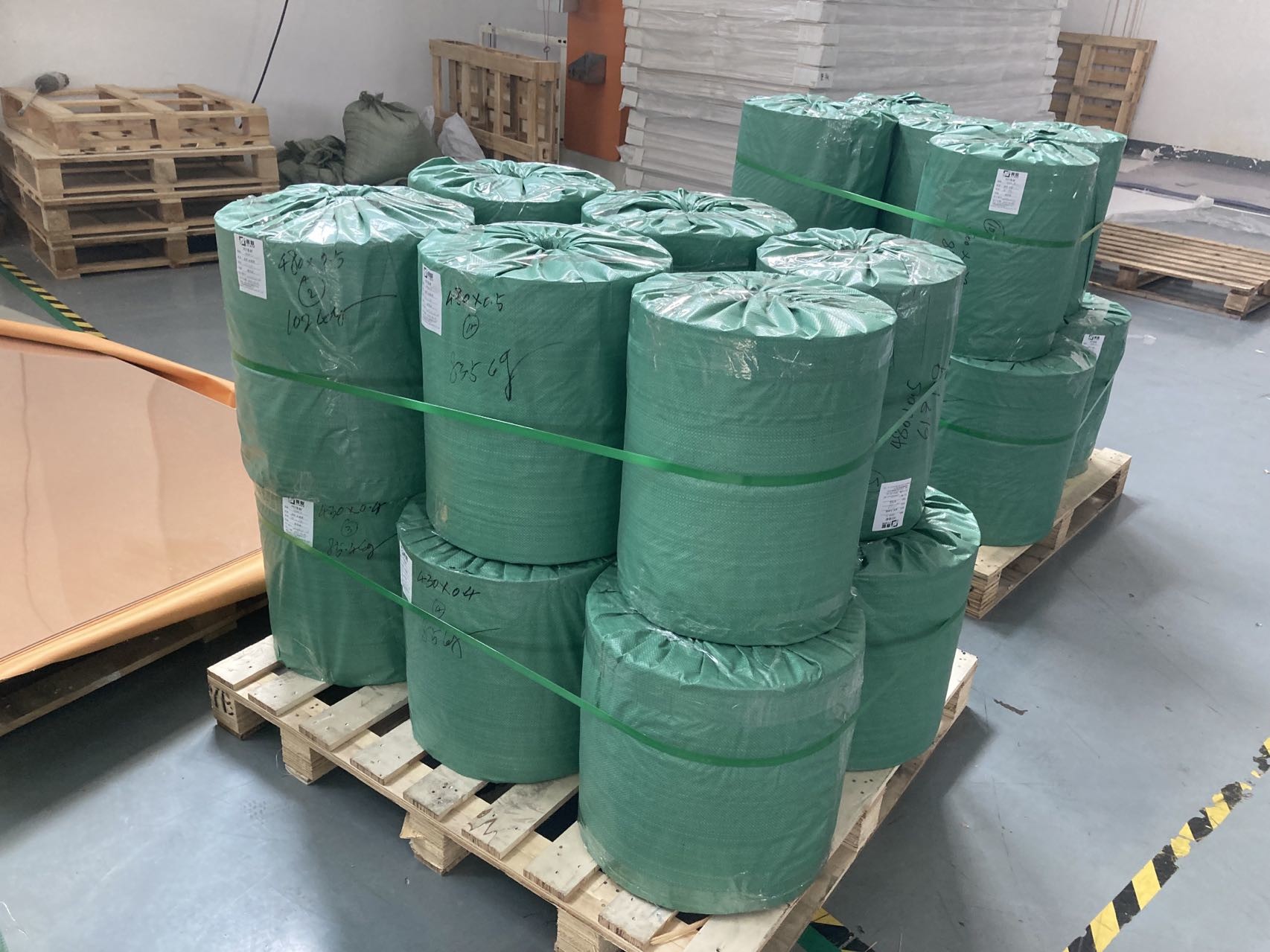

Package & Delivery

Sample: A4 size rigid PET with PP bag in box;

Sheet packing: 30kg per bag or as your requirement;

Pallets packing: 500- 2000kg per wooden pallet;

Container loading: 20 tons as normal.

Multi Function Plastic Case APET Plastic Sheet Dust Proof Clear Display Packaging Gift Box Case

FAQ

Q1. Are you a factory or trade company?

A: We are a professional manufacturer with 15 years of experience. If you have interests, welcome to visit our factory.

Q2. Do you provide samples? Is it free or extra?

A: Yes, we could offer the sample for free, but charge by freight collection.

Q3. How about the lead time?

A: Normal sample supply it at once. Unique samples need 3 days. mass production is generally 5-10 working days after receiving your initial payment.

Q4. Do you have any MOQ limits?

A: Normal only 1000kgs, special colors about 5000kgs.

Q5. What are your terms of payment?

A: 30% T/T in advance, balance before shipment. We accept L/C at Sight.
