PET Thermoforming Plastic Sheets APET High Temperature Resistance

Jiangyin Jiaou New Materials Co.,Ltd
Contact Now

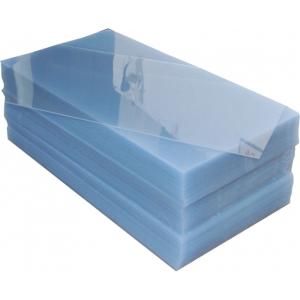

PET Thermoforming Plastic Sheets APET High Temperature Resistance

Place of Origin : Jiangsu, China

Brand Name : Jiaou

Model Number : APET Sheet

Supply Ability : 100 Tons Per Day

MOQ : 1000 kilograms

Price : Negociated

Certification : FDA, GRS, Reach, RoHS, ISO9001

Payment Terms : T/T

Delivery Time : 7 Work Days

Packaging Details : Sample: A4 size rigid PET with PP bag in box Sheet packing: 30kg per bag or as your requirement Pallets packing: 500- 2000kg per wooden pallet Container loading: 20 tons as normal

Product name : APET Plastic Sheet High Temperature Resistance

Material : PET

Thickness : 0.18mm - 2mm

Size : 300mm -1280mm

Processing Service : Cutting

Color : Transparent

Application : For Packaging vacuum-formed,sale displays, covers and machinery guards

Sample : Available

Packing : Pallets

Port : Shanghai,Lianyungang,Zhangjiagang

Contact Now

High Temperature Resistance PET Sheet

Product Description

PET sheet is a thermoplastic sheet made by Polyethylene terephthalate resin.PET offers the capability to produce complex shapes, precise details, deep draws and compound curves without worrying about durability. PET is easily formed, die-cut and punched. It also brings increased design freedom and lower fabrication costs. In sheet form, PET has the impact strength and fabrication ease that acrylic can`t touch, with the durability to significantly reduce packaging and shipping costs.

  • Resistant to common cleaners used on point of purchase displays
  • Allows for rigid thermoforming cycle times
  • FDA compliant grades available
  • Impact strength greater than acrylic and approaches polycarbonate
  • 86% light transparency compared to 87% for polycarbonate and 92% for acrylic
  • Die cuts/punches easily
  • Low forming temperature
  • Printable
  • Chemical resistant
  • Self-extinguishing

Technical Data Sheet
Item Typical Value Testing Method
Intrinsic Viscosity (dL/g) 0.750+/-0.015 Ubbelodhe viscometer
Specific Gravity (kg/cm³) 1.27 ASTM D792
Moisture Absorption (%) 0.15 ASTM D570
Tensile Strength@Yield 50mm/min( inch/min) (kgf/cm²) 496 ASTM D638
Tensile Strength@Break 50mm/min( inch/min) (kgf/cm²) 281 ASTM D638
Elongation@Yield 50mm/min( 2inch/min) (%) 3.7 ASTM D638
Elongation@Break 50mm/min(2 inch/min) (%) 136 ASTM D638
Flexural Strength 1.27mm/min(2 inch/min) (kgf/cm²) 620 ASTM D790
Flexural Strength 1.27mm/min(3 inch/min) (kgf/cm²) 20800 ASTM D790
Low temperature falling dart impact (g) 791 ASTM D358
Atmospheric temperature falling dart (g) 1701 ASTM D358
Lzod Impact Strength Notched@23 ℃ (J/m) 98 ASTM D256
Rockwell Hardness (℃) 106 R-scale
Heat Distortion Temperature 0.45Mpa(66 psi) (℃) 77 ASTM D648

Application For PETG Sheet

PET sheet are widely used for packaging consumer goods, electrical Accessories, and medical products. In packaging applications, PET sheet act as Excellent barriers to acids and strong oxidizers.

- Packaging

- Folding box

- Vacuum therm-forming
- Blister Pack

Package

PET Thermoforming Plastic Sheets APET High Temperature Resistance

FAQ

Q1. Are you factory or trade company?

A: We are professional manufacturer of 15 years experience, if you have interests welcome to visit our factory.

Q2. Do you provide samples ? Is it free or extra ?

A: Yes, we could offer the sample for free, but charge by freight collect.

Q3. How about the lead time?

A: Normal sample supply it at once. Special samples needs 3 days. mass production generally 5-10 working days after receiving your initial payment.

Q4. Do you have any MOQ limit?

A: Normal Only 1000kgs, Special colors about 2000kg.

Q5. What is your terms of payment?

A: 30% T/T in advance , balance before shippment. We accept L/C at Sight .
