APET Plastic Sheet 1mm 2mm High Gloss Clear Plastic
Product Description
APET plastic sheet is a thermoplastic sheet made of Polyethylene terephthalate resin.PET offers the capability to produce complex shapes, precise details, deep draws, and compound curves without worrying about durability. PET is easily formed, die-cut, and punched. It also brings increased design freedom and lower fabrication costs.
| Item | Typical Value |
| Product name | APET Plastic Sheet High Gloss |
| Width | 300mm -1280mm |
| Thickness | 0.18mm - 2mm |
| Size | Custom Size |
| Material | PET |
| Color | Transparent |
| Application | For Light Boxes |
| Surface | Smooth |
| Feature | Great Impact strength |
| Sample | Available |
• Outstanding thermoforming characteristics, particularly in deep draw applications
• Good impact resistance
• Allows for rigid thermoforming cycle times
• Die cuts/punches easily
• Low forming temperature
• Printable
• Chemical resistant
• Self-extinguishing
Technical Data Sheet
| General Properties | Value | Test Method | Unit |
| Density | 1.36 | ISO 1183 | g/cm³ |
| Water Absorption | 0.25 | ISO 62 | % |
| Flammability | HB / HB | UL 94 | / |
| Mechanical Properties | | | |
| Yield Stress | 85 | ASTM D638 | MPa |
| Elongation @ Break | 15 | ASTM D638 | % |
| Tensile Modulus of Elasticity | 3000 | ASTM D638 | MPa |
| Notched Impact Strength (Charpy) | 2 | DIN EN ISO 179 | kJ/m2 |
| Ball Indentation Hardness | 170 | DIN EN ISO 2039-1 | MPa |
| Shore Hardness | 84 | DIN EN ISO 868 | Scale D |
| Thermal Properties | | | |
| Melting Temperature | 255 | ISO 11357-3 | °C |
| Thermal Conductivity | 0.28 | DIN 52612-1 | W / (M*K) |
| Thermal Capacity | 1.1 | DIN 52612 | kJ / (kg*K) |
| Coefficient of Linear Thermal Expansion | 60 | DIN 53752 | 10-6K-1 |
| Service Temperature, Long Term | -20 up to +115 | Average | °C |
| Service Temperature, Short Term (Max.) | 180 | Average | °C |
| Heat Deflection Temperature | 80 | ASTM D648 | °C |
| Electrical Properties | | | |
| Dielectric Constant | 3.4 | IEC 60250 | / |
| Dielectric Dissipation Factor (50Hz) | 0.001 | IEC 60250 | / |
| Volume Resistivity | 10 18 | IEC 60093 | Ω*cm |
| Surface Resistivity | 10 16 | IEC 60093 | Ω |
| Comparative Tracking Index | 600 | IEC 60112 | |
| Dielectric Strength | 20 | ASTM D149 | kV/mm |
Application For PET Sheet
APET plastic sheets are widely used for packaging consumer goods, electrical Accessories, and medical products. In packaging applications, PET sheet act as excellent barriers to acids and strong oxidizers.
- Packaging
- Folding box
- Vacuum therm-forming
- Blister Pack

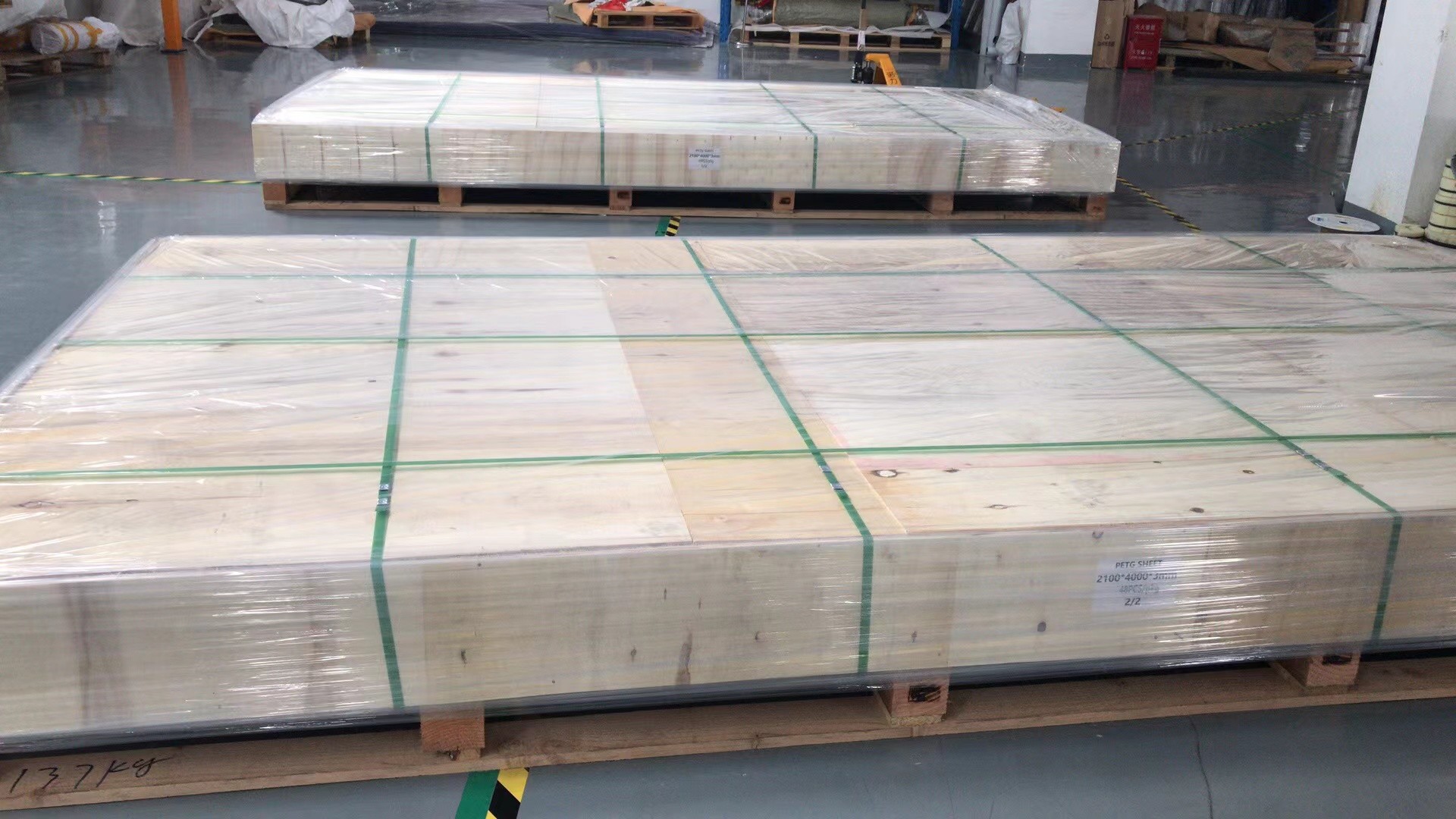

Package & Delivery
